Case Studies

CNC Turning and Turn-Mill Case Studies

Explore documented CNC turning and turn-mill manufacturing examples from DXSCNC. Each case identifies the published project facts and inspection requirements.

Read the Case Evidence

Manufacturing examples

Project facts and approved product photos are described on each page. Published quantities, materials and requirements apply to that example.

Inspection requirements

The drawing and agreed inspection requirements define acceptance for each new order.

Your part acceptance

Use the example to frame questions, then define your own geometry, datums, fit, treatment and inspection requirements in the RFQ.

Find production evidence by manufacturing problem

Cross-hole shaft

Turn-mill setup and cross-hole burr control. View case

Brass turn-mill component

External CMM planning, finishing and protection of machined surfaces. View case

Black POM mounting component

Workholding and dimensional checks for a long cylindrical polymer part. View case

45# steel threaded batch

A documented batch with repeat checks for thread, bore and shoulder features. View case

Real Manufacturing Case Studies

The 6061 flange ring is a documented production case. The 316L flange and 42CrMo shafts are real-photo product showcases; the 304 sleeve is an illustrated product example. Each linked page explains its evidence limits.

6061 aluminum serrated flange ring, perspective view after natural anodizing

6061 Aluminum Precision Serrated Flange Ring — 20,000 pieces

Project: 6061 aluminum, integrated CNC turn-mill machining, natural anodizing and ±0.02 mm central bore tolerance.

Evidence: Four DXSCNC production photographs document the independent flange ring; the tolerance applies to its central bore only.

Read the 6061 flange ring case
316L multi-port flanged component with three threaded central ports

316L Multi-Port Flanged Component

Product showcase · real photographs. Four DXSCNC photos show the machined flange and its threaded ports. Dimensions, tolerances and production quantity are not published; this is not a documented customer case.

Explore the 316L flange product
Illustrative visualization of a 304 stainless steel perforated sleeve

304 Stainless Steel Perforated Sleeve

Illustrated product example. The two enhanced images explain the perforated sleeve geometry; they are not original production photographs or inspection evidence.

Explore the 304 sleeve example
Angled view of black anodized 7075 aluminum turn-mill component

7075 Black Anodized Aluminum Turn-Mill Component

Product showcase · supplied photographs. Six views show one 7075 component with windows and slots. 7050 is an additional material option; this is not a documented 7050 production case.

Explore the 7075 aluminum product
Three real stepped shafts with milled longitudinal slots

42CrMo Series Precision Turn-Mill Shafts

Product showcase · real photographs. Six photos show stepped shafts, slots and threaded features. The material and processing history of each photographed part require production records; this is not one documented order.

Explore the 42CrMo shaft series

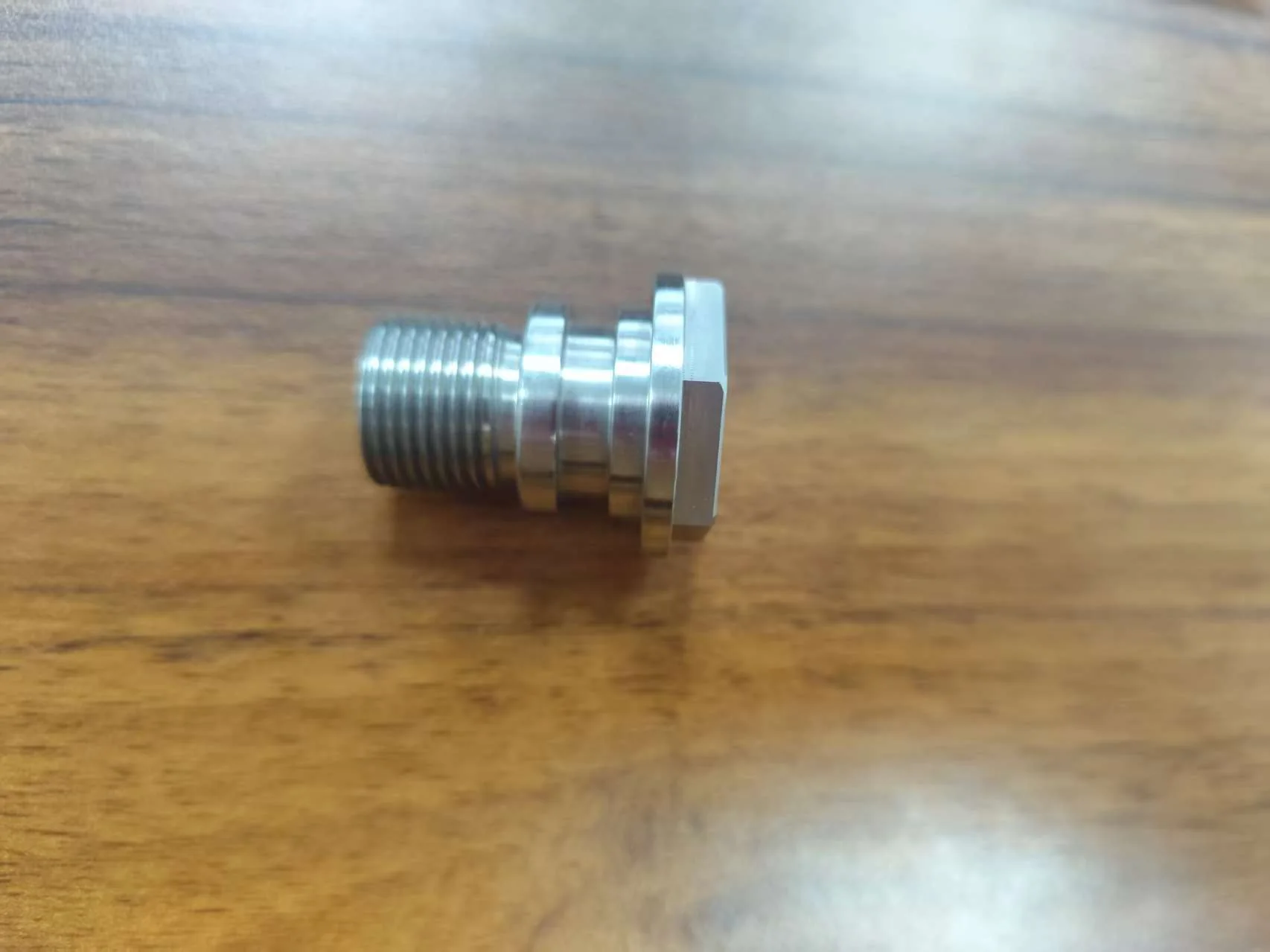

Precision 45# Steel Threaded Component - 10,000 Piece Production Batch

Challenge: The 10,000-piece 45# steel batch required repeat control of threads, bores, stepped diameters, shoulders and drawing-defined critical tolerances down to +/-0.01 mm.

Result: The 10,000-piece production batch was completed and documented with DXSCNC-owned photos; customer identity, drawings, inspection data and order value remain confidential.

Precision 45# steel threaded component - 10,000 pieces

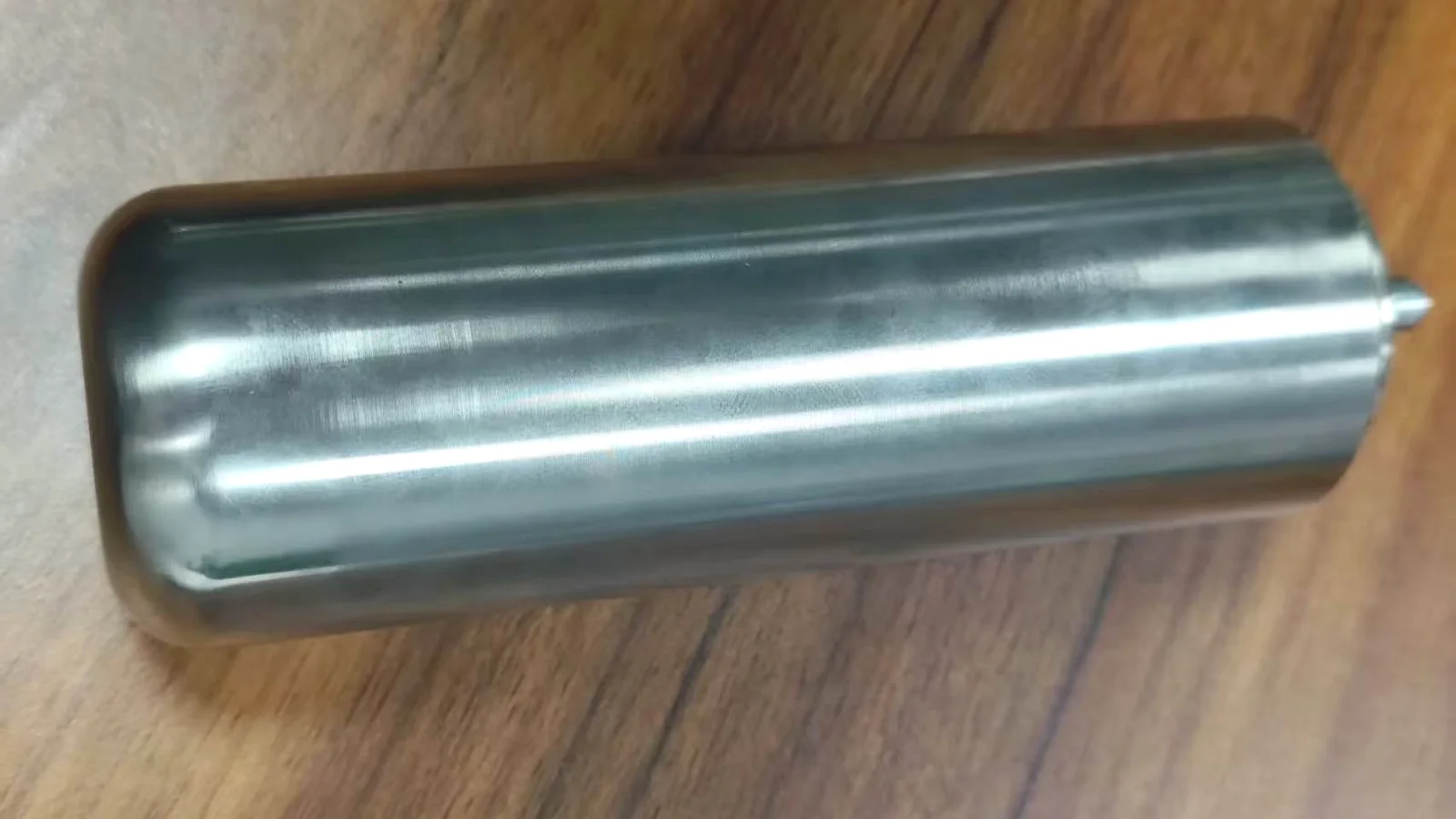

Q345R High Pressure Gas Cylinder Component CNC Machining Example

Challenge: The Q345R sealed gas-chamber component requires coordinated control of cylindrical geometry, sealing-related features, nickel-plating allowance and project-specific pressure validation requirements.

Result: DXSCNC-owned finished-component photos document the Q345R nickel-plated production example; customer data, drawing dimensions, pressure-test records and order information are not published.

Q345R nickel-plated pressure component production example

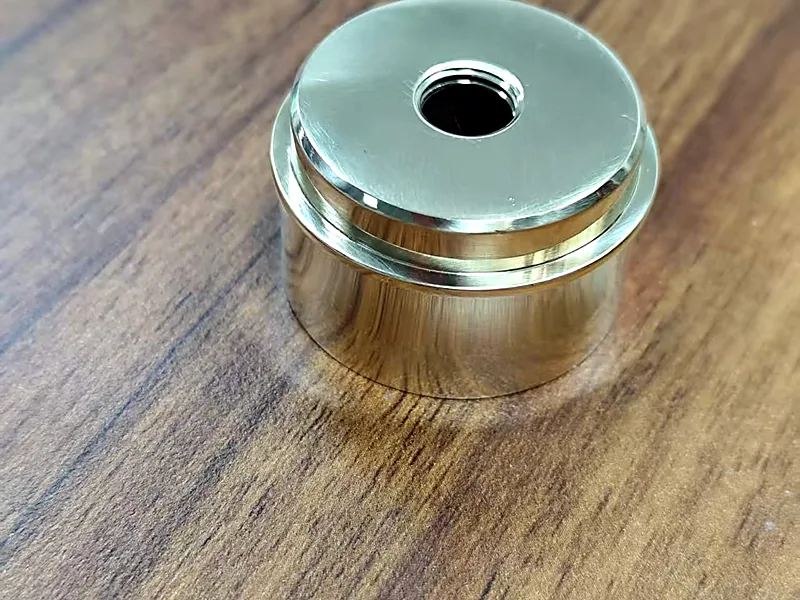

Mirror Polished Brass Threaded Sleeve CNC Machining Production Example

Challenge: The brass threaded sleeve requires internal thread review, bore finish control, burr-free thread entry, mirror-polished surface handling and packing protection.

Result: DXSCNC-owned product photos document the finished brass threaded sleeve; customer identity, drawing number, quantity and order value are not published.

Mirror polished brass threaded sleeve production example

Turn-Milled Black POM Long Cylindrical Mounting Component - 500 Pieces

Challenge: The 500-piece black POM component combines a long cylindrical body, M15 end threads, longitudinal milled features, cross holes, counterbores and position-related side holes.

Result: DXSCNC-owned product photos and approved project facts document the POM component; customer identity, application, drawing number and inspection records are not published.

Black POM long cylindrical component production example

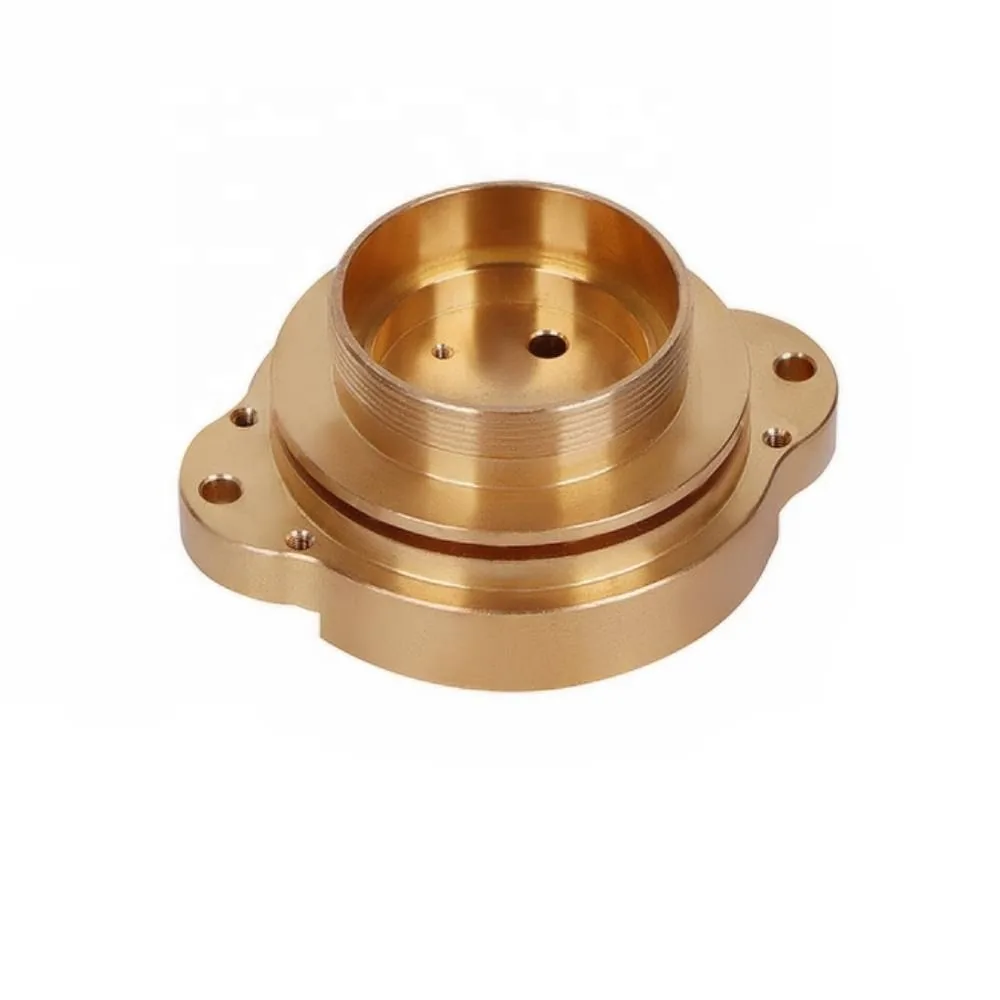

Brass Turn-Mill Component with CMM Inspection: CNC Machining Case Study

Challenge: The brass turn-mill components required strict geometric tolerance review across turned, milled, bored and hole features, with CMM inspection and anti-oxidation treatment.

Result: A real brass project is documented with finished-part photos and supplied public facts; customer identity, drawing number, inspection records and order value are not shown.

Brass turn-mill component with CMM inspection

Turn-Mill Shaft with Cross Holes: CNC Machining Case Study

Challenge: The 6082 aluminum component combines rotational geometry with threaded, mating and side-feature areas where burr control and black-finish protection must be reviewed.

Result: A real 1,100-piece DXSCNC project is documented with supplied finished-part photos; customer identity, drawing number and order details are not shown.

Threaded turn-mill component with radial cross holes

Review the Process and Acceptance Requirements

Case Study RFQ Reminder

Choose the closest geometry or inspection concern, rather than treating a published example as an identical process plan. For a new part, send the drawing, material and condition, quantity, functional datums, critical fits, thread requirements, finishing specification and inspection needs.

Request a quotation for your part

See the RFQ process

Request a Quote
Request a Quote
