Real Manufacturing Case

Brass Turn-Mill Component with CMM Inspection: CNC Machining Case Study

A real DXSCNC brass turn-mill machining case using customer-approved public finished-part photos. Customer name, drawing number, order information and confidential dimensions are not disclosed.

Confidentiality Note

This public case study removes customer name, customer logo, drawing number, order number, purchase-order value and confidential drawing details. The approximate size range, material, quantity, process, inspection method, surface treatment and packing method below were provided for public case-study use.

Project Overview

This project involved brass turn-mill machined components with mixed turned and milled geometry. The visible part family includes flanged, bored, contoured and multi-hole features where datum relationships, geometric tolerance review and surface protection matter.

The supplied public photos show finished components only. Raw material, machining process, CMM inspection and packing photos were not provided, so those stages are described from the approved project information rather than shown as real photo evidence.

Finished brass turn-mill component photo supplied by DXSCNC. Customer identity, drawing number and confidential dimensions are not shown.

Material and Quantity

Case typeBrass adapter / fitting and brass turn-mill component case study
Part categoryBrass turn-mill machined components
MaterialBrass
Quantity300 pcs each type
Approximate size rangeDiameter 215 mm x length 325 mm
Machining processTurn-mill machining with one-setup forming route as provided
Surface treatmentAnti-oxidation treatment
Inspection methodCMM inspection
Packing methodIndividual pearl-cotton bag packing

Real Project Photos

The following images are the available real DXSCNC project photos for public release. They are finished-part and feature photos; they do not show the customer drawing or confidential inspection records.

Finished brass turn-mill component photo supplied by DXSCNC. Customer identity, drawing number and confidential dimensions are not shown.

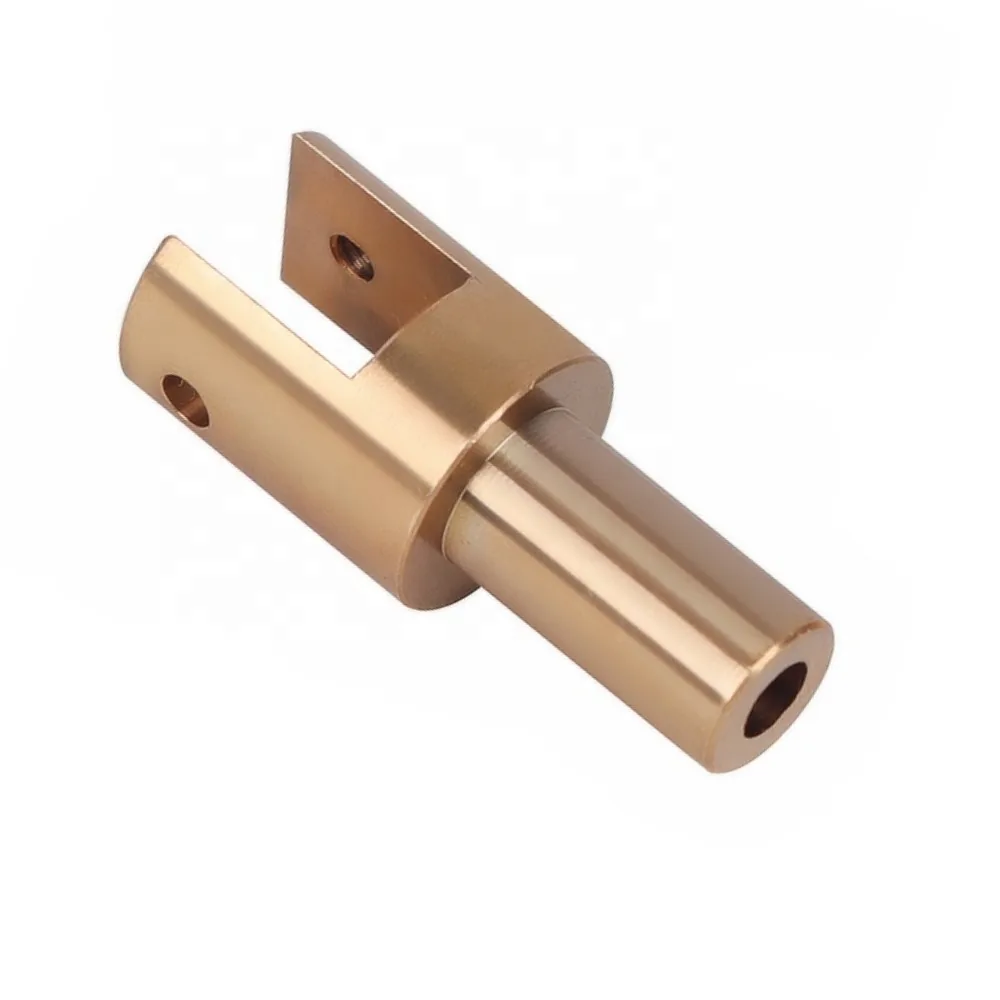

Finished brass component showing turned cylindrical features, milled fork geometry and drilled holes.

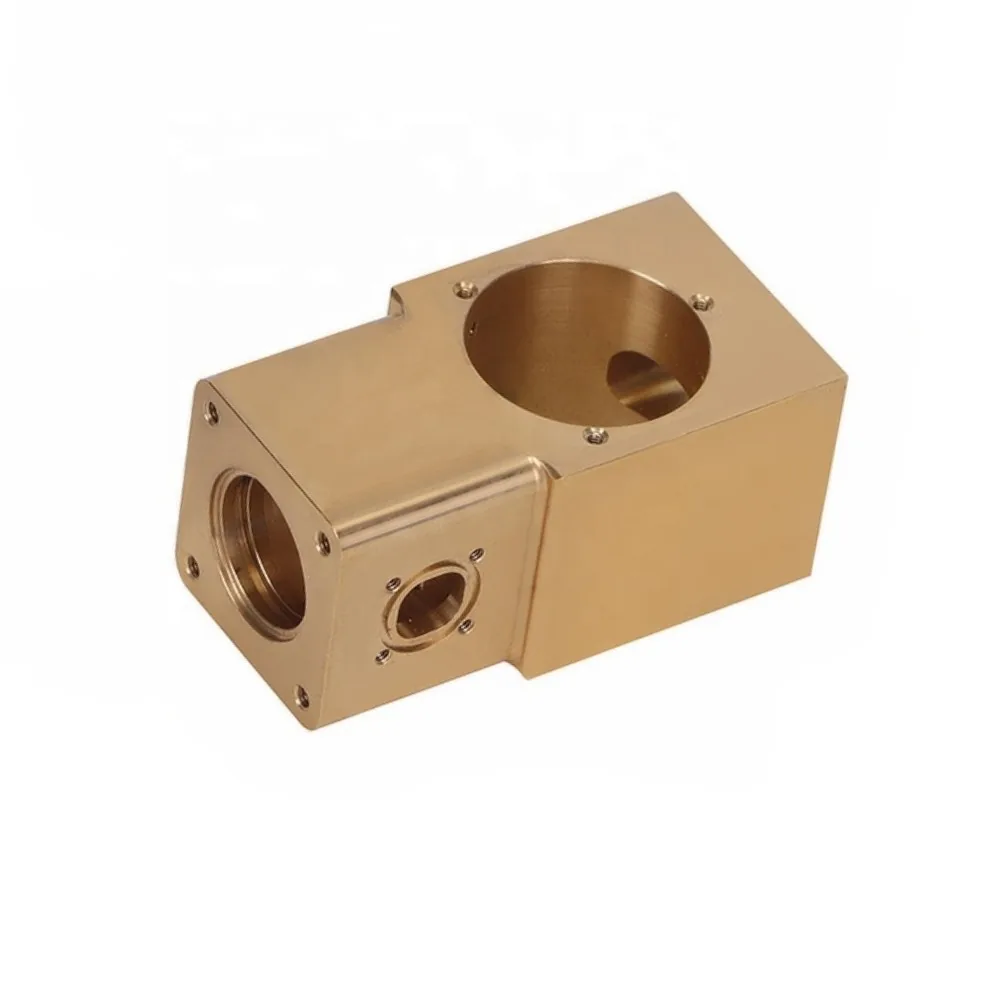

Finished brass component with multiple bores and machined faces requiring datum and geometric tolerance review.

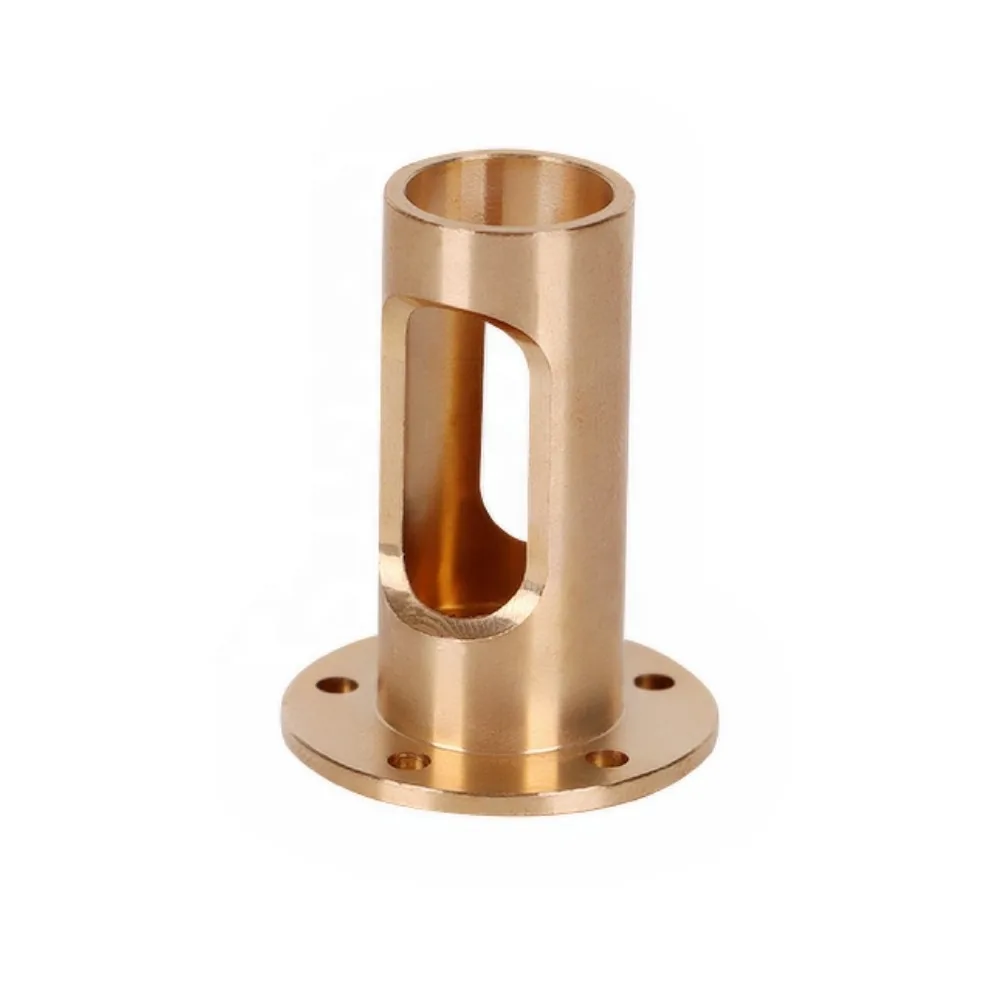

Finished brass flanged sleeve component with a milled window, flange holes and controlled turned surfaces.

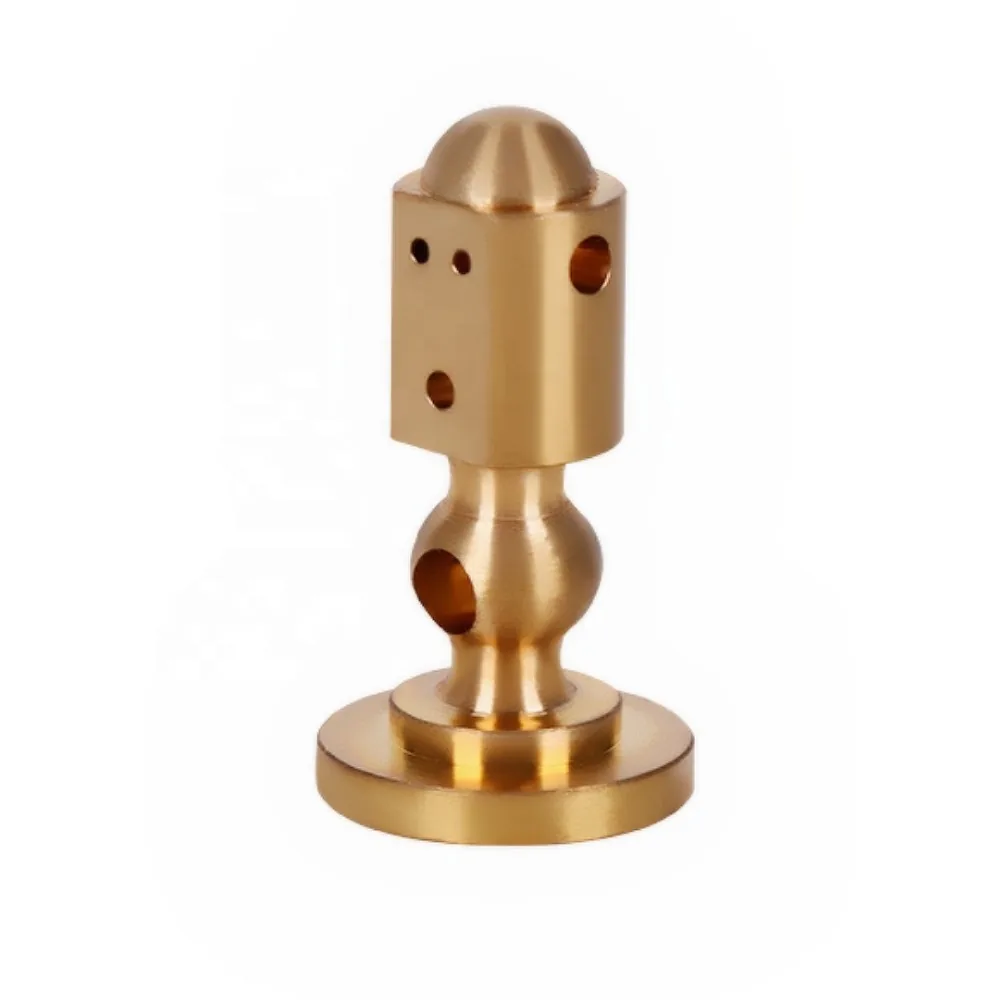

Finished brass contoured part showing radial holes, curved geometry and turn-mill feature relationships.

Component Features

  • Turned cylindrical surfaces and shoulders
  • Flanged profiles and bolt-hole features
  • Large bores and smaller side holes
  • Threaded or connection-related areas with specified manufacturing requirements
  • Milled slots, windows, flats or block features
  • Contoured brass geometry with radial holes
  • Anti-oxidation surface protection requirement

Main Manufacturing Challenge

The main manufacturing challenge was strict geometric tolerance control across mixed turned and milled features. These components are not simple round parts: bores, flanges, holes, slots, contour features and threaded or connection areas must be reviewed as related features.

When the part includes both rotational geometry and milled features, the machining plan must consider workholding, datum transfer, tool access, deformation risk, burr control and how CMM inspection will verify the functional relationships.

Risk areas to review

  • Datum relationship
  • Hole and bore position
  • Flange or face relationship
  • Thread or connection fit
  • Burr-sensitive holes
  • Surface protection after treatment

Machining Process Review

Manufacturing planning

Confirm brass material, quantity, approximate size, datum scheme, geometric tolerance notes, surface treatment and inspection requirements.

Workholding review

Check whether the part can be held securely while protecting visible brass surfaces and critical datum features.

Turn-mill machining

Use turn-mill process planning for turned surfaces, bores, holes, slots, flanges and related milled features.

Feature relationship control

Review how one-setup machining can reduce accumulated error between turned and milled features where applicable.

Deburring and cleaning

Control burrs at holes, slots, threaded entrances and visible edges before surface protection and packing.

CMM inspection

Use CMM inspection for specified geometric relationship checks according to the drawing.

Surface protection

Apply anti-oxidation treatment and protect finished brass surfaces from handling marks.

Individual packing

Pack each part separately in pearl-cotton bags to reduce collision and surface damage during export handling.

Precision and Tolerance Focus

DXSCNC's ordinary dimensional tolerance is ±0.01 mm. Tighter feature requirements are evaluated for the project. Dimensions without individual tolerances follow the general tolerance standard on the customer's drawing or the project agreement.

For this case, the public information states that geometric tolerance requirements were strict and CMM inspection was used. Exact tolerance values and inspection records are not published.

Inspection Approach

The approved inspection method for this project was CMM inspection. CMM is appropriate when geometric relationships, position, profile, perpendicularity, coaxiality or datum-based feature control must be reviewed from the drawing.

The public case does not include the customer's inspection report or drawing callouts. For a similar RFQ, include the drawing, datum scheme, critical tolerance notes and any required report format. If technical details need clarification, our team will contact you directly.

Inspection focus

  • Geometric tolerance requirements
  • Bore and hole position
  • Feature-to-datum relationship
  • Flange and face relationship
  • Thread or connection areas
  • Visual surface condition after treatment

Surface Treatment or Finishing

The supplied surface requirement was anti-oxidation treatment for brass. Brass surfaces can show handling marks and oxidation sensitivity, so finishing and packing must be reviewed together with cosmetic and functional requirements.

If dimensions must apply after treatment, the drawing or RFQ should state this clearly before production.

Packing and Export Protection

The supplied packing method was individual pearl-cotton bag packing. This helps separate brass components and reduce contact marks, especially for treated visible surfaces, flanges, threaded or connection-related features and machined edges.

Packing method illustration.

Production Result

The public production result for this case is completed brass turn-mill components, with the supplied quantity note of 300 pcs each type and finished-part photos approved for website use. Customer approval records, dimensional reports, yield figures, delivery data and order value are not published.

Engineering Takeaway

For brass turn-mill components with strict geometric tolerance requirements, buyers should provide more than a 3D model. The 2D drawing should clearly identify datums, geometric tolerance callouts, inspection method, critical surfaces, treatment notes and packing sensitivity.

Useful RFQ package

  • 2D drawing and 3D model
  • Material grade
  • Quantity by part type
  • Geometric tolerance callouts
  • CMM inspection requirements
  • Surface treatment notes
  • Packing requirements
  • Target delivery date
