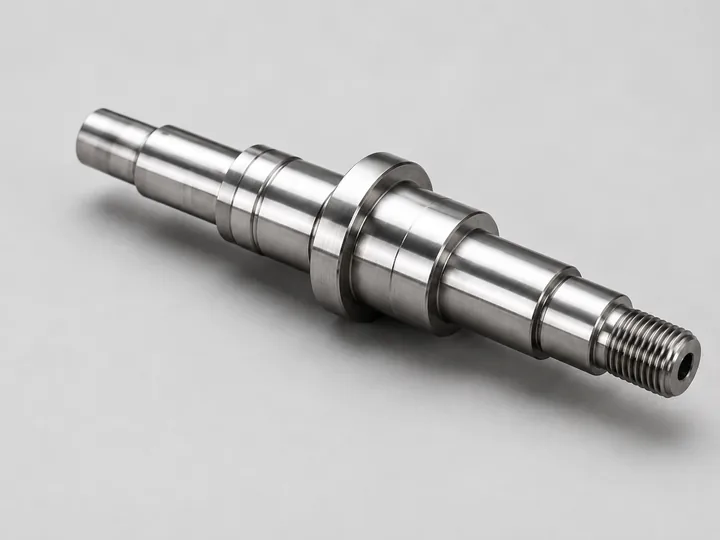

Controlling Runout in CNC Machined Shafts

A rotating indicator reading is an observation, not a diagnosis. Effective shaft runout control starts by separating machine, setup, component and measurement effects.

Why Runout Matters

Runout affects how a shaft rotates, locates or mates with other components. If a drawing specifies runout, the machining and inspection strategy must be planned around the datum system.

Common Causes

Runout can be affected by workholding, material straightness, cutting force, tool deflection, feature sequence and how the part is supported during machining.

Inspection Method

Runout should be checked according to the drawing datum. The buyer should define datum surfaces, critical diameters and whether runout applies to the whole shaft or a local feature.

RFQ Advice

For shafts with runout requirements, send the 2D drawing, 3D model if available, datum notes, material and quantity. Do not rely only on a 3D model without tolerance information.

Separate Spindle Motion from Workpiece Error

Spindle runout concerns the rotating spindle or its reference interface. Workpiece runout is the variation observed on a particular surface when the component rotates relative to an established reference. A good spindle does not remove errors caused by a bent blank, contaminated jaws or an incorrectly seated shoulder. Conversely, an indicator reading on a rough bar does not isolate spindle condition. Check the reference interface, the holding arrangement and the finished feature separately before changing cutting parameters or attributing the entire result to machine accuracy.

Recognize When Tool Runout Is Relevant

A rotating drill or milling cutter can have eccentricity at the cutting edges, causing unequal cutting action and affecting a secondary hole or flat. The relevant check includes the holder, seating condition, tool projection and cutting edges. A stationary turning insert does not rotate around its own axis in ordinary turning; its positioning error, wear and deflection are different mechanisms. Distinguishing these cases prevents a tool-holder problem on a cross hole from being confused with the rotational alignment of the shaft itself.

Choose Datums That Represent the Assembly

Identify which journal, bore or center establishes the functional axis and which face locates the shaft axially. An inspection between centers, in a collet or on supporting blocks can produce different observations because it realizes a different reference. The drawing and applicable tolerancing convention determine the required datum setup. Do not select the easiest accessible diameter merely because it gives a smaller reading. Mark the evaluated surface and measurement locations so another operator can reproduce the same inspection rather than inventing a new acceptance method.

Control Clamping Without Creating a New Shape

Grip length, jaw contact, clamping force and unsupported projection influence both seating and distortion. Excessive force can deform a hollow or slender section; insufficient support can allow cutting loads to bend the part. A slender shaft may also sag under its own weight, so orientation and support during measurement matter. Centers or additional supports are process options to evaluate, not universal remedies: contact pressure, access and alignment can introduce their own errors. Compare the condition during cutting with the condition required for final acceptance.

Keep the Reference Through Multiple Operations

When a shaft moves to another setup for its second end, grooves or side features, record how the original axis and axial stop are recovered. Chips on a stop face, different jaw contact or inconsistent center seating can shift that reference even when both operations individually produce correct diameters. Check a suitable reference feature after reclamping before finishing the next dependent feature. If heat treatment, grinding or coating follows turning, decide when the functional journals are established and which final relationships must be inspected after those operations.

Interpret the Reading Before Adjusting the Process

An indicator records combined variation from the surface, reference realization and measurement setup; it does not independently separate roundness, bending and alignment. Keep contact direction, probe location and support consistent, and check the measuring system against the required feature and tolerance. A localized high reading near a shoulder needs a different investigation from a trend along the entire shaft. The useful engineering conclusion is a traceable link between the functional datum, the source of variation and the corrective operation, rather than a blanket instruction to use a more accurate machine.

FAQ

Does a correct shaft diameter prove acceptable runout?

No. Diameter describes size; runout concerns surface variation relative to the specified datum setup. Both requirements need their own appropriate checks.

Should a shaft always be inspected between centers?

Only when that setup correctly represents the specified reference. Bearing-journal or bore datums may require a different inspection arrangement.

Related Engineering Resources

For a shaft quotation, identify the functional journals, axial datum, runout callouts and inspection condition alongside the drawing, material and quantity.
