Mark inaccessible edges
Identify cross-hole intersections and thread starts that are difficult to see. State whether an edge break is permitted near a sealing land or sharp functional corner.
Technical Notes
Burr control is an edge-design and process-planning problem. Different intersections create different risks, so one generic deburring instruction rarely defines an adequate result.

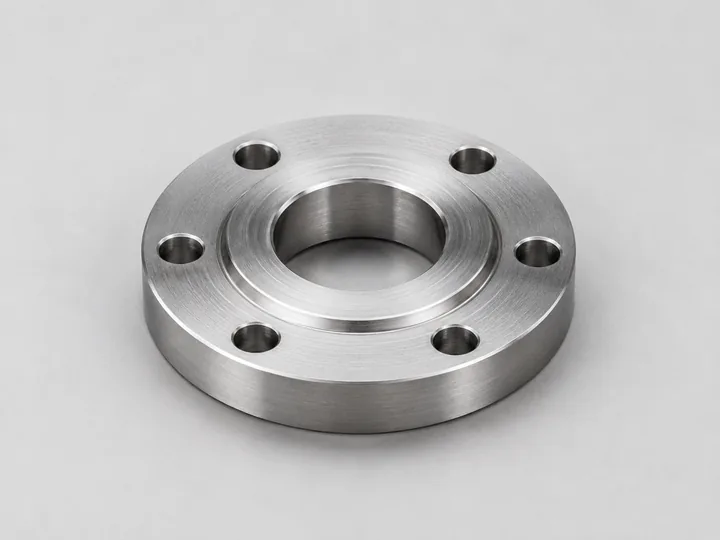

Burrs often appear around cross holes, radial holes, grooves, thread starts, sharp shoulders and bore intersections. The smaller the part or the more restricted the feature, the harder burr removal may be.
If burrs affect assembly, sealing, motion or cleanliness, the drawing should make this clear. Otherwise a part may pass dimensions but still fail function.
Tool path, drill exit direction, chamfering, edge breaks and secondary deburring all influence burr condition. Some internal burrs require special attention because they are difficult to inspect visually.
Buyers should identify critical edges, no-burr requirements, internal intersections and any surface treatment that may make burrs more visible or more difficult to remove.
Near the end of a cut, remaining material can bend or tear instead of separating cleanly because it has less support. A drill breaking into a bore, a turned edge at parting and a milled slot exit therefore need different attention. The material's ductility, cutting condition and geometry influence the remaining lip. Map where each tool exits relative to the finished component. An accessible outer edge may be straightforward to treat, while the same cutting action inside a passage leaves a hidden feature that requires a deliberate follow-up operation.
When one hole enters another, the cutting edge does not encounter a uniform flat exit. Support changes around the curved intersection, and the tool may leave an uneven edge inside the receiving bore. The risk also changes with hole orientation, diameter relationship and breakthrough location. Machining one feature first can make the later burr easier or harder to reach. Review the complete sequence and actual intersection rather than assuming that a clean circular entrance means the remote edge is equally clean or that a standard external chamfer will reach it.
A cutting edge with unsuitable geometry, wear or poor support can push material rather than form a controlled chip. Tool selection and replacement criteria should consider the material and exit geometry as well as dimensional tool life. Reducing cutting loads near an exit or changing the operation order can help in suitable conditions, but neither is a universal recipe. A preventive trial should examine the actual burr location and surface damage together. A smaller burr is not an improvement if the change also creates an unacceptable hole or torn functional surface.
Accessible edges may be treated by a controlled chamfer, countersink, brush or dedicated tool, depending on the design. Internal intersections can require a different approach because the removal tool must reach the lip without changing adjacent surfaces. Specialized thermal, abrasive or electrochemical methods are general industry options, not claims that DXSCNC owns or offers each process. Define the permitted edge break and protected areas before choosing a method. An unbounded instruction to polish everything can round locating shoulders, enlarge a port or damage a thread flank.
A visual check at the outside entrance cannot establish the condition of a remote cross-hole exit. Identify the viewing direction and suitable access, using magnification, an appropriate internal viewing method or another agreed check where needed. Distinguish an attached edge from a loose particle: removing one does not establish passage cleanliness. If cleanliness matters, define a separate acceptance requirement and verification method. Sampling and inspection records should reflect which features were actually examined rather than implying complete internal coverage from a photograph of the outside.
Useful instructions identify the edge, its function and the allowable condition. A seal-contact edge, sliding interface and cosmetic external corner may need different treatment. Specify an edge break or burr criterion appropriate to the drawing instead of assuming a single undefined burr-free standard covers all features. Consider the inspection stage after plating or other finishing, since subsequent operations may affect edge condition or leave residues. The manufacturing conclusion should connect prevention, controlled removal and verification at each critical intersection without promising zero burr risk on every component.
Usually it addresses a different edge. The internal intersection needs its own access, removal and verification plan.
No. Deburring addresses attached material or edge condition; cleaning addresses chips, residue and loose contamination. Each needs an appropriate requirement.
For a burr-sensitive part, mark the internal intersections, protected surfaces, allowable edge treatment and any cleanliness checks on the inquiry drawing.
Identify cross-hole intersections and thread starts that are difficult to see. State whether an edge break is permitted near a sealing land or sharp functional corner.
Select a visual, magnified or functional check appropriate to the edge. Recheck after cleaning or treatment when loose particles, a raised lip or coating buildup could affect fit. See the published cross-hole shaft example.
