Choosing Between CNC Turning and Turn-Mill Machining

The best process is the route that meets the drawing economically and repeatably. Compare the complete sequence, including handling and inspection, rather than assuming more combined operations are always better.

The Basic Difference

CNC turning is best for rotational features such as OD turning, ID turning, facing, boring, grooving, threading and parting. Turn-mill machining can be considered when the same rotational part also requires milled features such as flats, slots, cross holes, side ports or bolt-hole patterns.

When CNC Turning Fits

CNC turning usually fits shafts, sleeves, bushings, collars, spacers and threaded parts where most features are concentric or rotational. It can be efficient and accurate when the drawing is mainly based on diameters, bores, shoulders and threads.

When Turn-Mill Fits

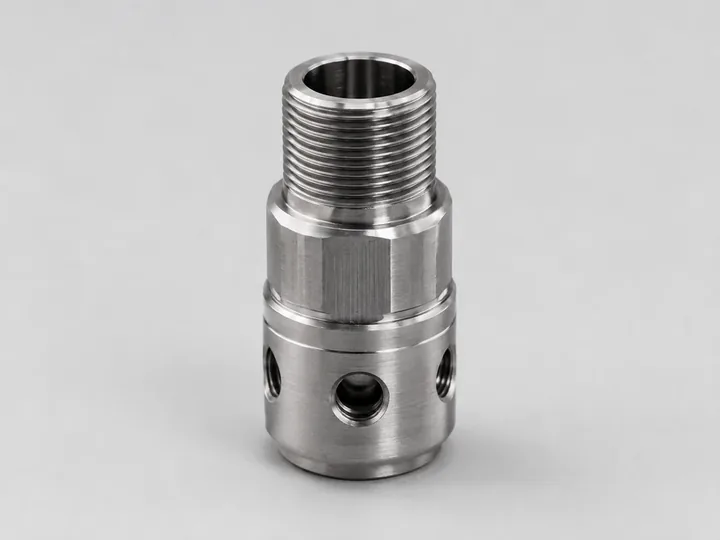

Turn-mill machining fits parts that combine turned diameters with cross holes, radial holes, flats, slots or multi-side details. Completing related features in one setup can reduce accumulated error and protect datum relationships.

How Buyers Should Decide

If your part includes only turned features, CNC turning may be enough. If the drawing includes rotational features plus off-axis holes, flats or bolt patterns, the part should be reviewed for turn-mill machining.

Sort the Drawing into Rotational and Side Features

Start with diameters, bores, shoulders, grooves and axial threads that can be generated around the workpiece axis. Then identify radial holes, off-center holes, wrench flats, slots and other nonrotational features. An axial hole is not automatically an off-axis machining task, while a small radial port may introduce a meaningful angular or positional relationship. This feature map shows whether ordinary turning covers the part or whether a further operation is needed. It also prevents a simple turned spacer from being assigned an unnecessarily complex route solely because a combined machine is available.

Compare Both Plausible Manufacturing Routes

One route may turn the blank and transfer it to a separate drilling or milling fixture. Another may combine suitable operations on a turn-mill machine. Compare access, tool changes, gripping arrangements and the ability to finish each end in both routes. A combined machine may still need reclamping or a later external process, so one machine does not necessarily mean one setup. Conversely, a well-designed secondary fixture can be an effective solution when feature relationships and production quantity support it. Neither route should be dismissed from its label alone.

Identify Where Datum Transfer Creates Risk

A secondary setup must recover the drawing's functional axis, axial location and any angular reference needed for side features. Contact variation, fixture clearance or incomplete seating can influence that recovery. Keeping related features in one suitable setup can reduce those transfer opportunities, but does not eliminate tool deflection, indexing errors, thermal effects or part distortion. Positional accuracy still depends on the complete process and inspection plan. The engineering question is which reference transfer matters to function and how it will be controlled, not whether the machine name sounds more advanced.

Check Tool Access and Workholding Before Combining

A cross hole behind a shoulder, a deep pocket or a feature close to the chuck may limit access. Long tools can create a stability problem even when the programmed motion is possible. Review collision clearance, support, chip evacuation and whether a finished surface must later serve as a gripping area. A proposed combined sequence should leave a practical way to complete and inspect every required feature. Moving a difficult operation to a dedicated station can be sensible if it protects surface quality or offers a more reliable holding arrangement.

Evaluate Efficiency at the Required Batch Size

For a small batch, programming, tool preparation and fixture setup can dominate the route comparison. For repeat batches, cycle balance, handling, tool wear, inspection and changeover become important in different proportions. Fewer transfers may reduce work in progress and handling opportunities, but a long combined cycle can occupy a valuable machine while simpler equipment could perform some operations effectively. Compare total manufacturing cost and expected variation for the actual demand. No universal percentage saving or automatic accuracy advantage follows from choosing turn-mill machining.

Choose a Route and a Verification Strategy Together

An operation plan is incomplete if it creates a feature that cannot be checked with the required reference or access. Identify the final datum condition, critical hole positions and any dimensions affected by later treatment. For DXSCNC inquiries, the drawing, material and quantities support a route-specific quotation; questions about technical details can be discussed directly. The practical conclusion is conditional: predominantly rotational parts often suit turning, while connected side features can justify turn-mill review when geometry, datum relationships and the complete production route support that choice.

FAQ

Is turn-mill machining always cheaper?

No. Setup, cycle time, tooling, handling, inspection and order quantity determine the complete route cost.

Does one machine guarantee one setup?

No. Part access, second-end work, support and later finishing can still require additional setups or processes.
