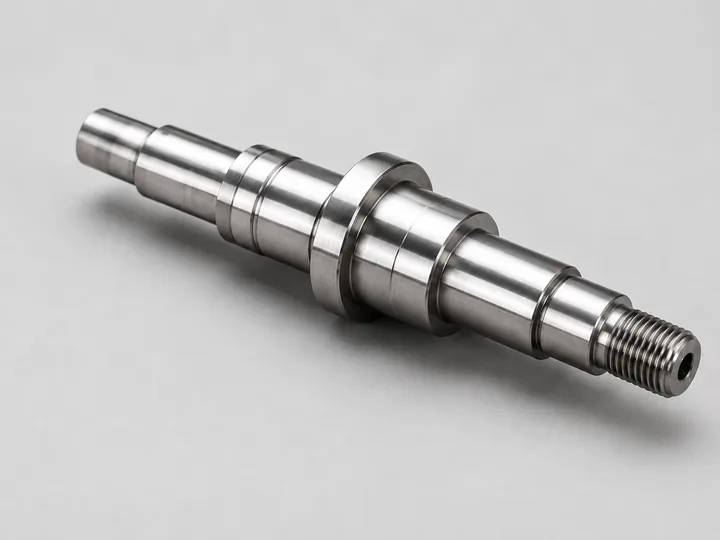

42CrMo / 42CrMo4 CNC Machined Parts for Strength-Focused Assemblies

DXSCNC supports CNC turning and turn-mill machining for drawing-based components made from 42CrMo / 42CrMo4 alloy steel. 42CrMo and 42CrMo4 alloy steels are used when mechanical strength, toughness or heat-treatment response is required. They are common in shafts, collars, sleeves, threaded parts and load-related mechanical components.

DXSCNC is a China-based precision CNC turning and turn-mill machining supplier focused on drawing-based rotational and assembly-sensitive components. Machining range depends on the machine type and the part setup.

Typical Components

  • alloy steel shafts
  • threaded mechanical parts
  • collars and sleeves
  • flanged strength components
  • parts requiring heat treatment or coating coordination

Material Designation and Equivalents

These are comparison designations, not automatic substitutions. Chemical composition, mechanical properties, delivery condition and certification requirements vary by standard and supplier, so the customer drawing and the material certificate govern the order.

Chinese designationGB/T 3077 42CrMo
European steel name42CrMo4
Werkstoff number1.7225
Common North American comparisonAISI / SAE 4140 (4142 for higher sulphur)
Japanese comparisonJIS SCM440
Final engineering referenceCustomer drawing, applicable standard and material certificate

Why the Delivered Condition Matters More Than the Grade

42CrMo4 is a through-hardening chromium-molybdenum steel, so the condition it arrives in matters as much as the grade name on the drawing. The same part can be supplied annealed, normalised, or quenched and tempered to a stated hardness range, and those three conditions machine differently, distort differently and inspect differently.

A shaft turned from annealed bar and hardened afterwards can move out of tolerance on diameter, straightness and length; the same part machined in the hardened state costs more in tool wear but holds geometry. Hardness range, heat treatment stage and whether final machining happens before or after treatment therefore change the whole process route, and they have to be settled before the first cut rather than discovered at first article inspection.

Manufacturing Route: Condition, Allowance and Section Size

Two decisions dominate a 42CrMo4 quotation: the delivery condition, and where heat treatment sits in the route. Turning annealed stock is straightforward, but the part will move during hardening, so a grinding allowance and a post-treatment finishing operation have to be priced in. Turning pre-hardened stock removes that movement and replaces it with tooling cost. Choosing between the two is a commercial decision as much as a technical one, and it is cheaper to take it before the drawing is released.

Section size deserves its own check. Through-hardening response in 42CrMo4 falls as diameter increases, so a 40 mm shaft and a 200 mm shaft called out to the same hardness range will not necessarily reach that figure at the core. Where hardness is critical, the drawing should state the test position as well as the value, because a core reading and a surface reading of the same part can differ by several HRC.

Critical Features to Settle Before Heat Treatment

  • bearing seats and shaft diameters that must hold size after hardening
  • thread starts, thread runout and thread length where threads are cut before treatment
  • keyways, splines and relief grooves acting as stress raisers
  • journals and seal faces carrying runout or concentricity limits
  • bores that must stay aligned across a hardening cycle
  • surfaces that need grinding allowance left on the drawing
  • areas where surface hardness is specified and decarburisation is a risk

Inspection Focus for Hardened Alloy Steel

  • hardness measured on the part, not taken from the mill certificate alone
  • decarburisation depth where the drawing specifies surface hardness
  • diameter, roundness and runout measured after heat treatment, not before
  • thread gauging after treatment or coating, with coating allowance stated
  • crack indication on hardened sections where the drawing requires it
  • straightness on long shafts, checked on a surface plate or between centres
  • heat number and certificate traceability against the delivered batch

What to Put in a 42CrMo4 RFQ

  • drawing with either a hardness range, a tensile requirement, or the applicable standard
  • delivery condition: annealed, normalised, or quenched and tempered
  • whether final machining happens before or after heat treatment
  • grinding allowance left on diameters that will be ground after hardening
  • material certificate requirement and inspection document level
  • coating or plating type, and whether a de-embrittlement bake is required
  • thread standard and whether threads are cut before or after treatment
  • first batch quantity and expected repeat quantity, stated separately

Related DXSCNC Pages

FAQ

Can DXSCNC machine 42CrMo / 42CrMo4 alloy steel parts from customer drawings?

Yes. Parts are quoted from the 2D drawing or 3D model together with the required delivery condition: annealed, normalised, or quenched and tempered to a stated hardness range. Where the drawing gives a hardness but no treatment route, that gap is raised at quotation rather than assumed in production.

What should buyers confirm for 42CrMo / 42CrMo4 alloy steel CNC machining?

Three items change the price most: the delivery condition, whether final machining happens before or after heat treatment, and whether diameters will be ground. Also state the hardness or tensile requirement, the certificate level, any plating that needs a de-embrittlement bake, and whether threads are cut before or after treatment.

Does surface treatment affect quotation?

Yes, and on this grade the effect is larger than on stainless. Plating above 32 HRC adds a de-embrittlement bake and extends lead time; coating thickness changes thread and bore fit; and masking is needed wherever hardness or a ground surface has to be preserved. All three need to be priced rather than absorbed.

Is 42CrMo4 the same as 1.7225?

Yes. 42CrMo4 is the European steel name and 1.7225 is the Werkstoff number for the same grade; AISI 4140 is the closest North American comparison. An equivalent designation does not guarantee identical chemistry, hardenability or mechanical properties, so the drawing, delivery condition and material certificate govern the order.

Machining 42CrMo4: What Actually Drives the Process

Machinability in 42CrMo4 tracks hardness more than chemistry. Annealed or normalised stock around 180 to 220 HB cuts with conventional carbide and predictable tool life. Once the part is quenched and tempered above roughly 300 HB, cutting forces rise, carbide wear becomes the limiting factor rather than the cycle time, and insert cost per part can double on the same geometry. This is why the delivery condition on the purchase order decides the process route, not the grade name in the title block.

There are two common routes. Machine soft, harden, then finish the critical diameters after treatment: cutting stays economical, but the drawing has to carry a grinding allowance and the part will move in heat treatment. Or harden the bar first and machine the finished geometry in the hardened state: the geometry is held without a second route change, at higher tooling cost and with some features becoming impractical. Which route applies depends on the tolerance, the section size and whether the drawing permits grinding.

Continuous turning of alloy steel produces long, stringy chips. In practice the constraints are chip breaking at the selected feed, coolant reaching the insert edge, and rigidity on longer shafts, which usually show chatter and finish deterioration before they show a dimensional error. Slender sections and deep bores are where the machining sequence most often has to be re-planned rather than pushed harder.

Where 42CrMo4 Parts Go Wrong

The most common failure is not a machining error at all: it is dimensional movement after heat treatment. A shaft that measures inside tolerance when it leaves turning can return from quenching and tempering with straightness, ovality and length change outside the drawing limit. The countermeasure is an allowance plus a defined finishing operation after treatment, agreed at quotation stage, not a tighter tolerance imposed on the turning operation.

Decarburisation is the second. If the surface layer loses carbon during austenitising, surface hardness measured on the finished part falls below the specified value even though the core and the mill certificate are both correct. Where a drawing specifies surface hardness, the reading has to be taken on the part after treatment, and enough stock has to be removed after treatment to get below the decarburised layer.

The third is plating. Electroplated zinc or zinc-nickel on a part at 32 HRC or above can introduce hydrogen, and a high-strength 42CrMo4 part that passed every dimensional check can crack days later under load, or in storage. Where a drawing calls for electroplating on a hardened part, a de-embrittlement bake inside the window defined by the plating standard belongs in the specification, because it cannot be added once the parts are plated.
