Specifying and Inspecting Thread Fit in CNC Components
A thread is a mating geometry with its own specification and acceptance rules. A general dimensional tolerance cannot replace a complete thread designation.
Thread Standard Comes First
Threaded parts should clearly define metric, UNC, UNF or other thread standard, tolerance class, depth and engagement length. Ambiguous thread notes create quotation and inspection risk.
Thread Entrance and Chamfer
Thread start chamfer affects assembly feel and reduces damage during installation. For internal threads, entrance condition and burr removal are important.
Surface Treatment Impact
The effect of finishing on thread fit depends on the specified process; deposited coatings and conversion treatments should not be treated as identical. This should be reviewed before production, especially for tight threads.
Inspection Focus

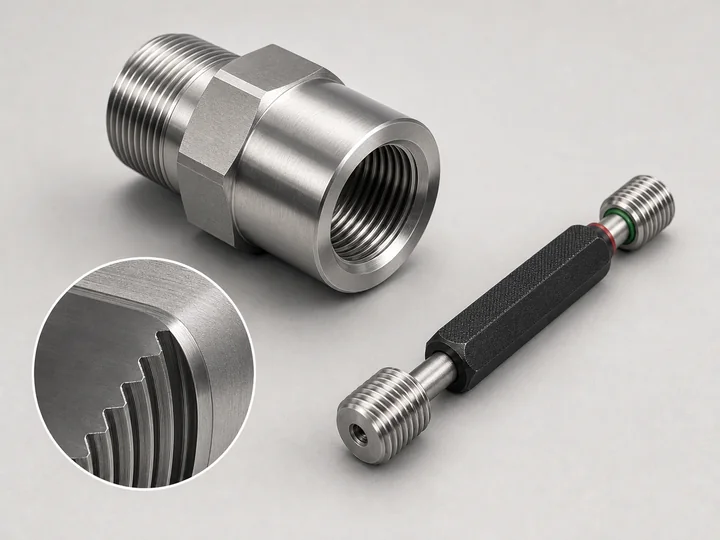

Thread gauges, mating part checks, visual inspection and burr review may all be needed depending on the drawing.
Start with a Complete Thread Designation
The nominal size alone does not define a thread. Identify the thread system, pitch or threads per inch, profile, handedness, number of starts where relevant, and tolerance class or governing acceptance requirements. Straight fastening threads and tapered connection threads have different functions and inspection conventions. State the applicable standard and edition rather than mixing details from familiar but incompatible systems. A supplier cannot establish the intended fit from a photograph of the mating screw or from the assumption that all threads of one nominal size are interchangeable.
Keep Thread Fit Separate from Ordinary Size Tolerances
Thread engagement involves flank contact, pitch and lead relationships as well as diameter. An outside micrometer reading on the major diameter cannot establish the complete fit, and a general plus/minus note does not define a thread class. Internal and external tolerance designations must be read together with the applicable thread system. Functional acceptance may combine the effects of multiple thread errors. If the drawing also controls thread position relative to a datum, that is an additional requirement, not something automatically demonstrated by a size or fit gauge.
Define Usable Engagement Rather Than Only Hole Depth
A blind tapped hole includes space for the tool lead, runout and chips. Drilled depth, total thread depth and the length of usable full thread are therefore not necessarily the same. At an external shoulder, insufficient relief can prevent the mating component from reaching its locating face even though the thread starts correctly. Review entry chamfers, end relief and tool clearance against the assembly. The drawing should make the required engagement clear without requiring the machinist to infer it from a nominal hole-depth dimension.
Choose the Machining Route for the Geometry
Single-point turning, tapping and thread milling have different access, chip-control and setup considerations. A process suitable for an open external thread may not suit a blind internal feature or a thin wall. Tool condition and material behavior can affect flank quality, while excessive clamping may distort a sleeve around its thread. These are process-selection questions, not evidence that one method is always more accurate. Review the thread together with nearby bores, shoulders and cross holes so that completing one feature does not damage or obstruct another.
Specify the Condition in Which Gauges Are Used
Use thread plug or ring gauges appropriate to the specified system and acceptance limits, following the relevant gauging procedure. Do not apply a universal number of permitted turns across unrelated standards. Cleanliness, burrs, damage and gauge condition affect interpretation. Functional gauging is valuable, but it does not provide every individual thread dimension or validate the complete assembly. Where individual parameters, usable length or location must be reported, define those checks separately rather than treating a simple pass result as a complete dimensional report.
Include Finishing and Assembly in the Acceptance Plan
Deposited coatings and conversion treatments can affect dimensions and surface condition differently. Define whether thread acceptance applies before or after finishing, including any masking or allowance agreed by the drawing owner. A selected mating part may help evaluate practical assembly but is not automatically a substitute for the specified gauge or standard. If tightening torque, locking behavior or sealing is important, assign the appropriate assembly validation separately. The useful conclusion is a consistent chain from thread designation to manufacturing condition, gauging and intended engagement, with no unsupported universal fit guarantee.
FAQ
Does the typical dimensional machining tolerance define thread fit?
No. Thread geometry and acceptance require the specified thread system, size, pitch and class or equivalent limits. General dimensional tolerances do not replace them.
Does a mating bolt replace a specified thread gauge?
Not automatically. A mating check can supplement the agreed inspection, but the drawing and applicable gauging procedure determine acceptance.
