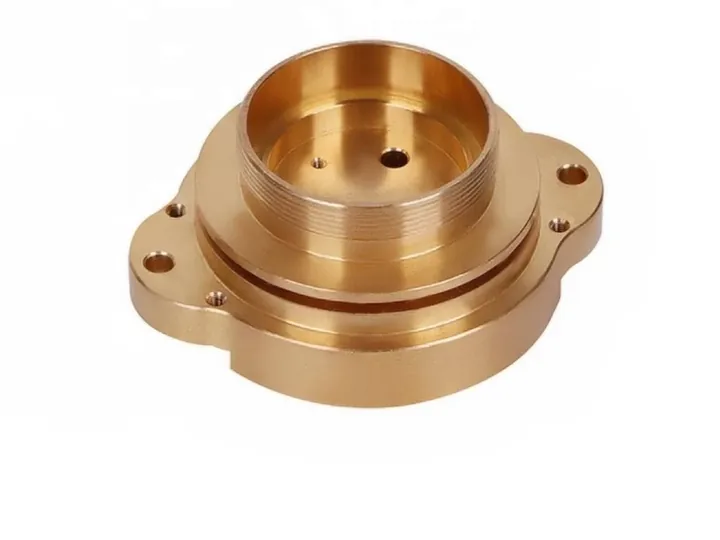

Machining Brass Adapters and Fittings for Their Interfaces
For a brass adapter, successful machining means preserving the intended connection and sealing interfaces. Easy chip cutting alone does not establish a functional fitting.
Brass Is Machinable, But Details Matter
Brass generally machines well, but fittings and adapters require attention to thread fit, sealing faces, bore cleanliness and edge condition.
Thread and Sealing Areas
If a fitting seals against a face or thread, the surface condition and thread entrance should be protected. Damage during machining or packing can create assembly issues.
Internal Burrs
Flow-related parts should be reviewed for internal burrs around ports, cross holes and bore intersections.
Buyer RFQ Notes
Provide thread standard, material grade, sealing requirements, pressure or fluid context if relevant, and inspection expectations.
Treat Brass as a Family of Materials
Brass grades differ in composition, microstructure and supply condition, so their cutting behavior is not interchangeable. A route developed for a free-cutting alloy may need different tooling and chip control for a specified lead-free grade. Material selection must also address the application's corrosion, fluid-contact and regulatory requirements, which cannot be inferred from color or machinability. State the exact designation and governing material specification. A supplier should not substitute a more convenient alloy merely because both materials are commonly described as brass.
Identify How the Connection Actually Seals
Some connections rely on a gasket, an O-ring or a machined face, while others use a defined tapered-thread sealing arrangement. The thread's presence does not establish which mechanism applies. Identify the sealing contact, mating geometry and acceptable edge condition on the drawing. A turned face with an attractive appearance may still carry a radial scratch across the sealing path. Dimensional acceptance, surface texture and visual damage criteria should therefore address the actual sealing interface without implying that a machining inspection constitutes a pressure or leakage test.
Coordinate Internal and External Thread Features
Specify the thread family, pitch, size, class or applicable acceptance limits, and whether the connection is straight or tapered. A matching-looking external thread does not establish compatibility with a different internal standard. For a blind internal thread, distinguish drilled depth, full usable thread and tool clearance. For an external thread near a shoulder, consider relief and mating-face clearance. These features affect tool access, assembly engagement and gauging. They should be resolved through the drawing rather than an operator's guess about what a customer normally uses.
Keep Intersecting Passages Accessible for Deburring
A drilled port entering a main bore creates an internal intersection that may retain a lip or loose fragment even when both entrances look clean. Review the drilling sequence, approach direction and access for a controlled secondary edge treatment. Simply increasing an external chamfer does not remove a hidden internal burr. Deburring also needs a boundary: excessive removal can change a sealing land or nearby thread. Inspection should identify the actual intersection and the viewing or checking method, not just request an undefined statement that the entire part is burr-free.
Read Surface Finish in Its Manufacturing Context
Built-up material on a cutting edge, chip contact and handling damage can affect a brass surface. Tool condition, cutting action and chip evacuation need review for the specified alloy and geometry rather than a universal cutting recipe. If plating or another treatment follows machining, define masking, dimensional allowance and the stage at which the sealing surface is accepted. Protective packing should keep threads and faces from striking adjacent parts. Neither a shiny finish nor a plating color proves the specified roughness, material identity or connection performance.
Separate Thread Gauging from Connection Validation
Appropriate thread plug or ring gauges evaluate the specified acceptance condition; gauge identity and use must match the thread system. A gauge result does not by itself verify every individual thread parameter, sealing surface or service requirement. Keep visual checks of the thread entrance, useful engagement and bore intersections in the inspection plan. If pressure, leakage, cleanliness or fluid compatibility testing is required, define the procedure and responsibility separately. This prevents a procurement request for machined brass parts from silently becoming an unsupported certification of the finished fluid system.
FAQ
Are all brass alloys equally easy to machine?
No. Composition and condition influence chip formation, tool behavior and surface results. The specified grade needs its own process review.
Does a passing thread gauge prove the fitting will not leak?
No. Gauging and sealing validation address different requirements. Any leakage test must be separately specified and assigned.
